PC/ABS Plastic Glass Fiber Granules Compound PC ABS Resin
Description:
Basic Information:
|
|
|
|
Product name |
1000NS |
|
Material |
PC/ABS |
|
Usage |
General Plastics, Engineering Plastics, Specialty Plastics, Auto Parts |
|
Plastic Properties After Heated |
Thermoplastic Plastics |
|
Plastic Forming Method |
Injection |
|
Color |
Customized |
|
Quality |
Top Quality |
|
Shape |

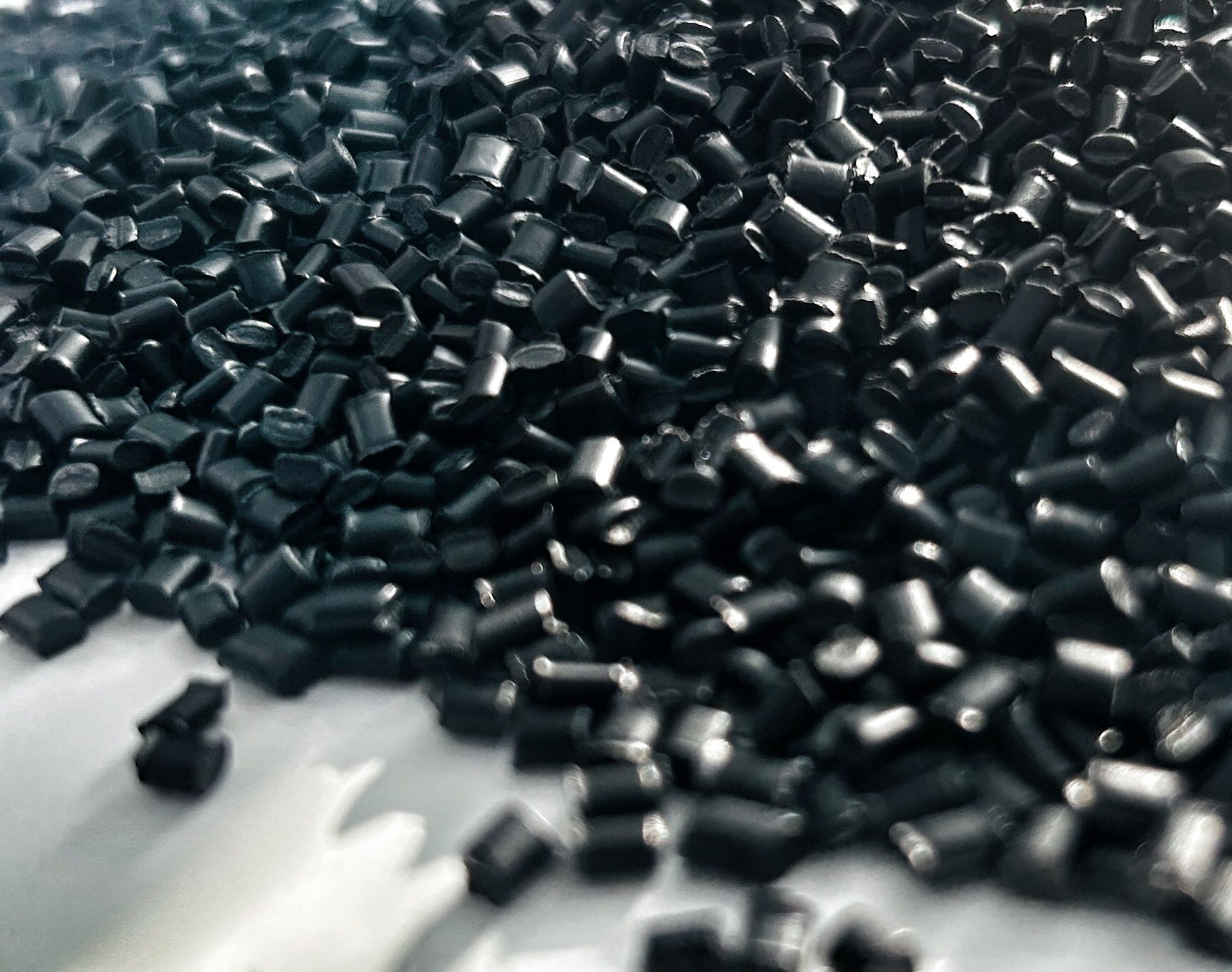

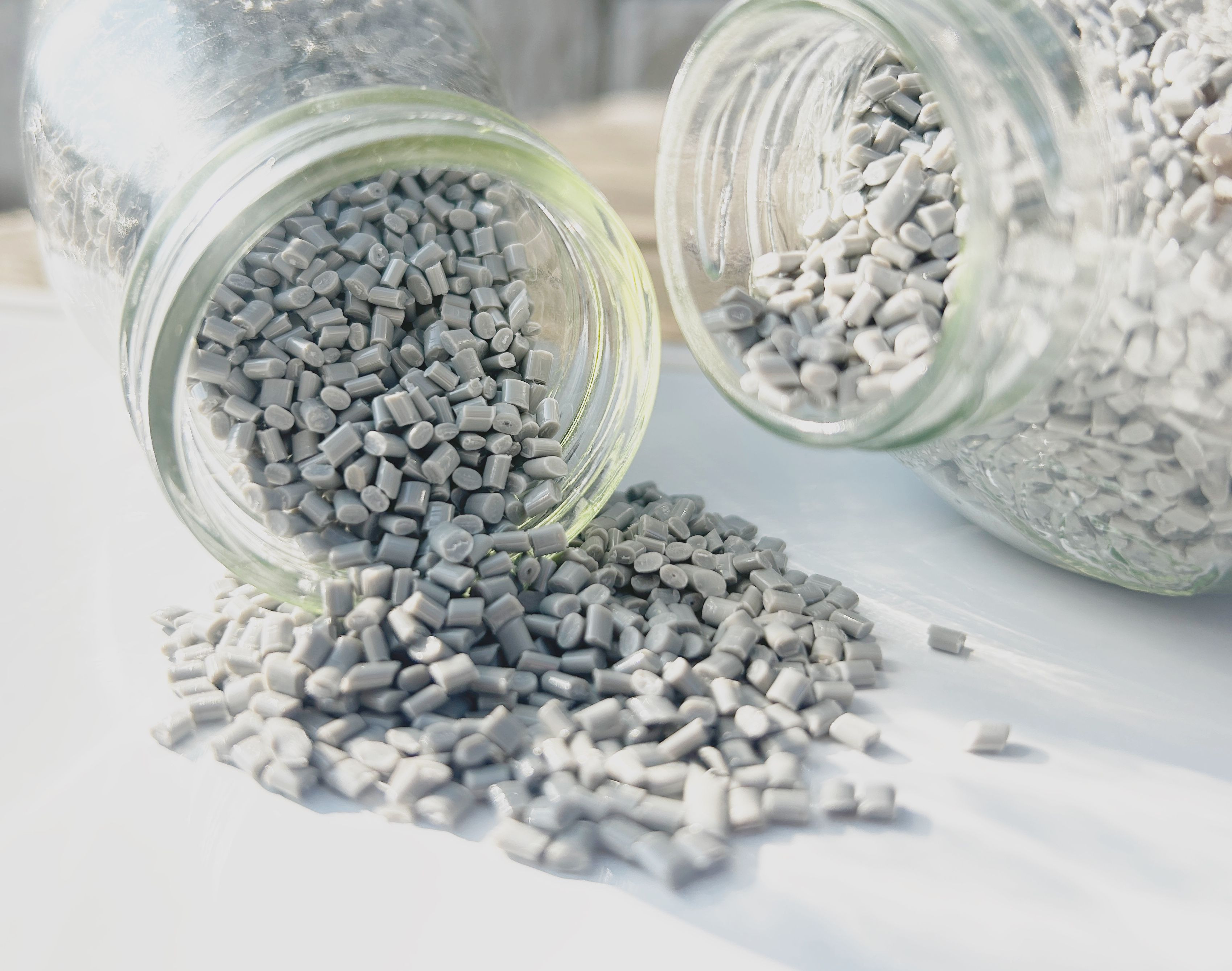

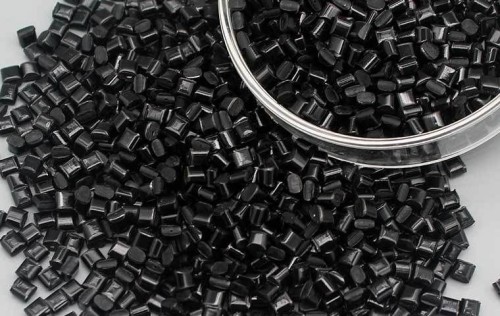

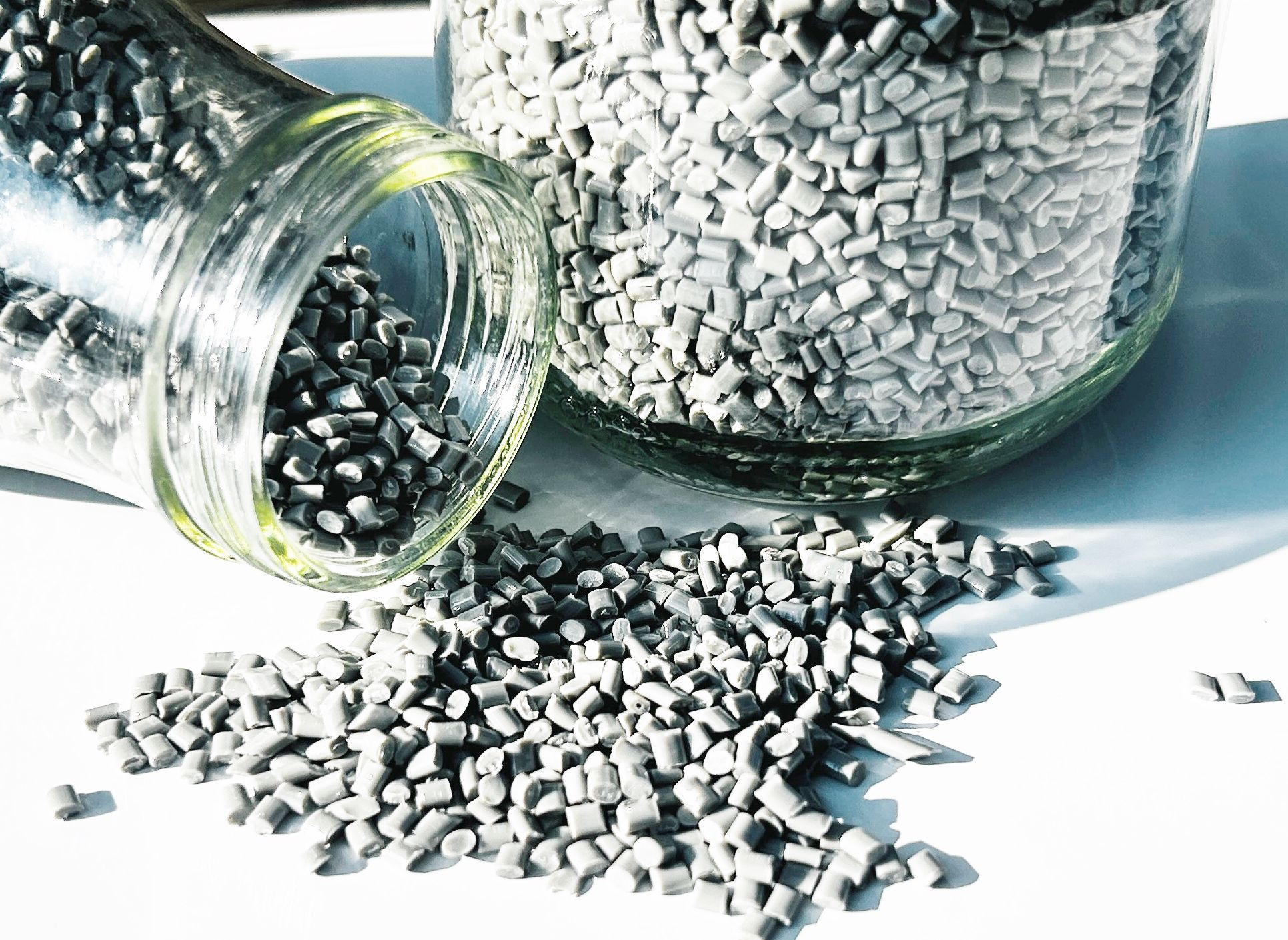

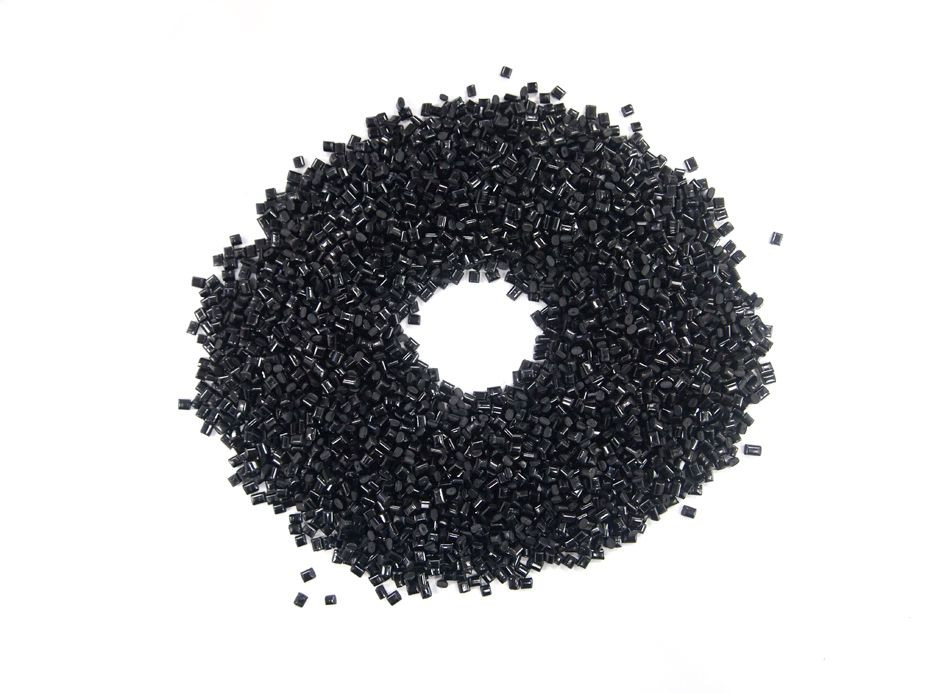

Granules |
|
Certificate |
ISO9001:2015 |
|
Application |

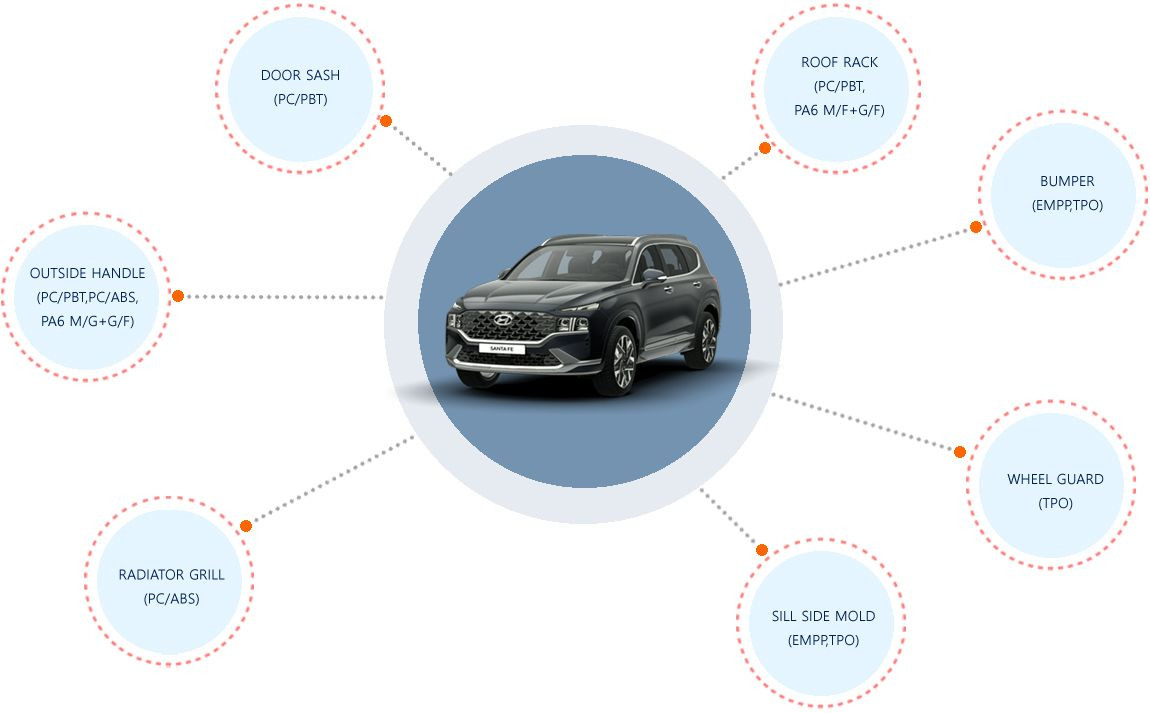

Automotive Parts, Home Appliance Components, Elect |
|
Specification |
Customized |
|
Grade |
Extrusion Grade |
|
Production Capacity |
15ton daily |
|
Delivery Time |
15-20days |
|
Transport Package |
Customized Packing |
|
Origin |
South Korea |
|
OEM |
Support |
Product information:
PC/ABS, polycarbonate and acrylonitrile-butadiene-styrene copolymers and mixtures, which are a combination of polycarbonate (Polycarbonate) and acrylonitrile-butadiene-styrene (ABS) Plastic. Plastic that combines the superior properties of both materials.
Product Analysis:
|
Product Description |
Applications |
||||
|
· Good dimensional stability |
· Injection molding |
||||
|
· Excellent heat stability |
· Good mechanical properties balance |
||||
|
Properties |
Test Method |
Test Condition |
Unit |
Typical Values |
|
|
Physical properties |
|||||
|
Specific Gravity |
ISO 1183 |
23ºC |
g/cm3 |
1.2 |
|
|
MI |
ISO 1183 |
|
g/10min |
60 |
|
|
Ash |
ISO 3451 |
800ºC,30min |
% |
0 |
|
|
Mechanical properties |
|||||
|
Tensile Strength |
ISO 527 |
50mm/min |
MPa |
65 |
|
|
(yield) elongation |
ISO 527 |
50mm/min |
% |
70 |
|
|
Flexural Modulus |
ISO 178 |
2mm/min |
MPa |
2700 |
|
|
Cantilever beam notched impact strength |
ASTM D256 |
23ºC |
J/m |
15 |
|
|
Non-notched impact strength of cantilever beam |
ASTM D256 |
23ºC |
J/m |
- |
|
|
Other properties |
|||||
|
Flammability |
UL94 |
1.6mm |
|
V0 |
|
|
Note: The data above is a typical value for reference, not a guaranteed value. The data will vary with tool design such as gate type, gate location, gate number, injection molding process, and part thickness. The data will vary with different colors as well. Before using the material, please consult with TOPO NEW Material Co., Ltd. |
|||||
|
Processing Conditions |
Range |
||||
|
Melt Temperature |
230-250ºC |
||||
|
Mold Temperature |
60-100ºC |
||||
|
Pre-Dry needed |
90ºC, 3-4h |
||||
|
Note: The above process condition is only for reference. The actual process should be adjusted according to different types of machines, mold designs, and product designs. |
|||||
Features:
1. Good comprehensive performance, high impact strength, chemical stability, and good electrical performance.
2, Good weld ability, made into two-color plastic parts, and can be chrome-plated and painted.
3, Has high impact, high heat, flame retardant, enhanced, transparent and other levels.
4, The fluidity is a little worse than HIPS, better than PMMA, PC, etc., and has good flexibility.
5. Excellent balance of mechanical properties
Our services:
Pre-sale service
Inquire and consulting Support
Optimized specification to match each customer’s need
Sample testing support
View our factory
After sale Service
Material testing report before delivery
English Manual
INNOCHEM offer following grade:
Our company:
The INNOCHEM was founded in 2002 in Gyeongsangbuk-do in south Korea. It is a high tech enterprise mainly engaged with production, sales and research and development of various high-performance modified engineering plastic.
Our companies incorporate modified PP, PC, ABS, PC, PBT, PA6, PA66, HIPS and other high-performance modified engineering plastic. With 3 advanced high-speed twin-screw mixing equipment and one professional sample production line, our annual sales reached 10, 000 tons with actual production capacity reaching up to 15, 000 tons. We also have an independent laboratory with a full range of testing machines and a team of professional engineers. Our company owns ISO9001: 2015 and other quality system certifications, we can also supply the material with SGS certificates. We are confident to provide high-quality materials which can fully meet different clients′ expectations. Our materials are now widely used in automotive, household appliances, electronic appliances, telecommunications, and other industries.

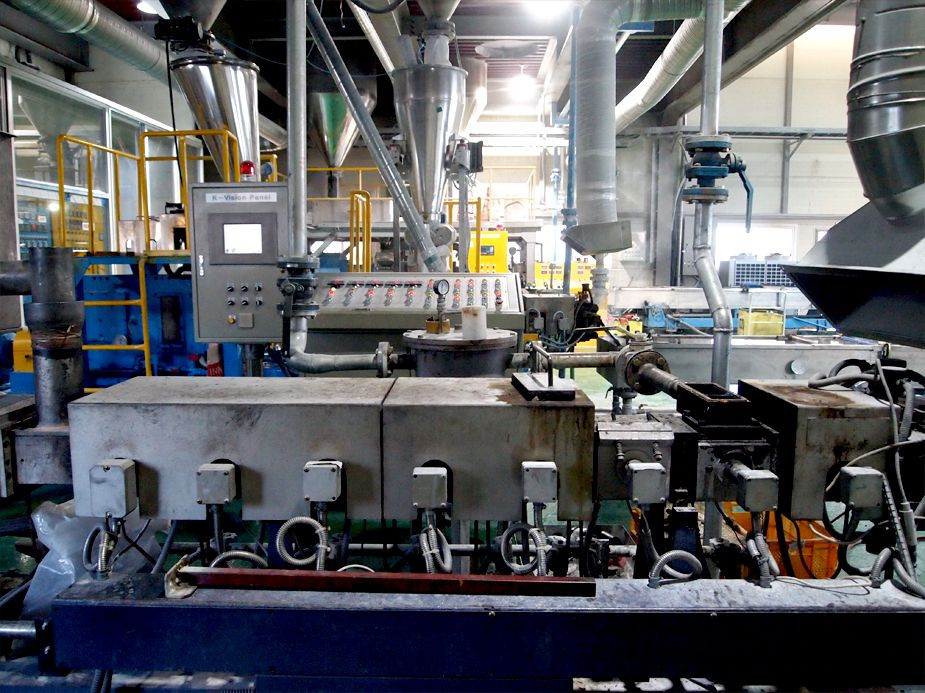

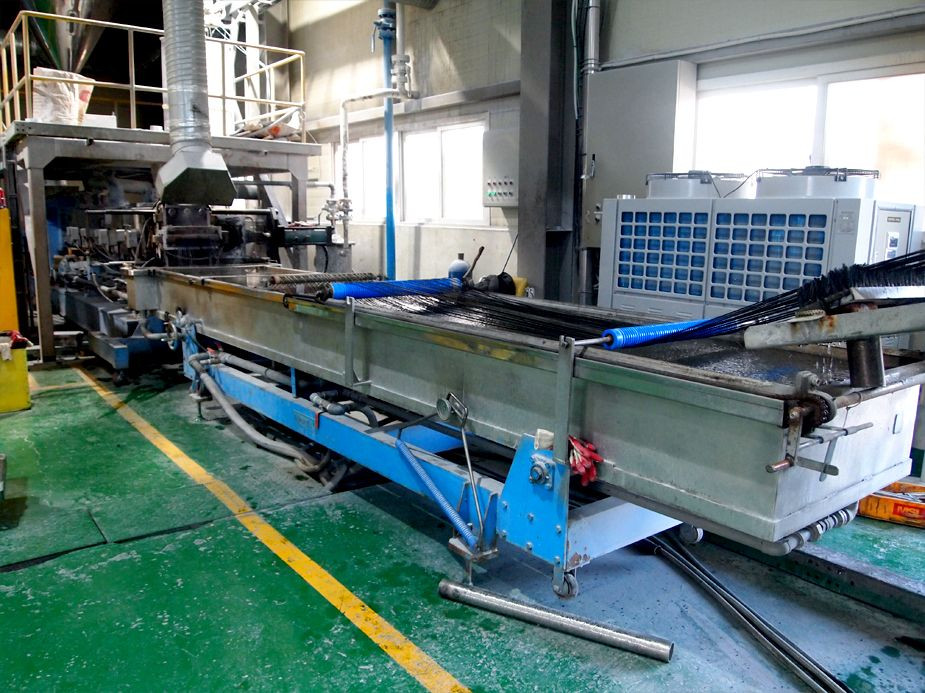

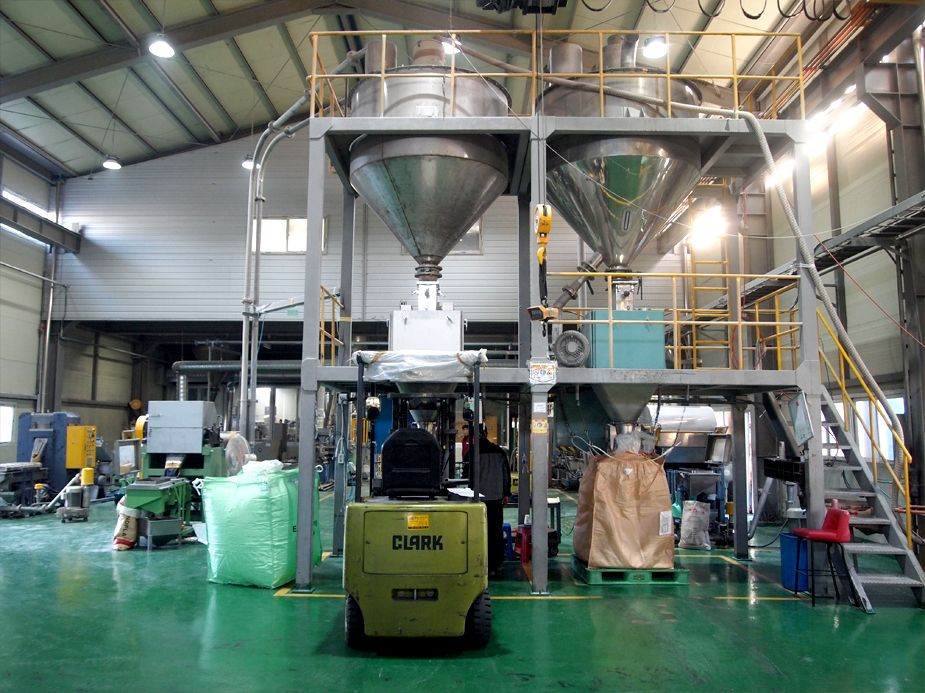

Production line:

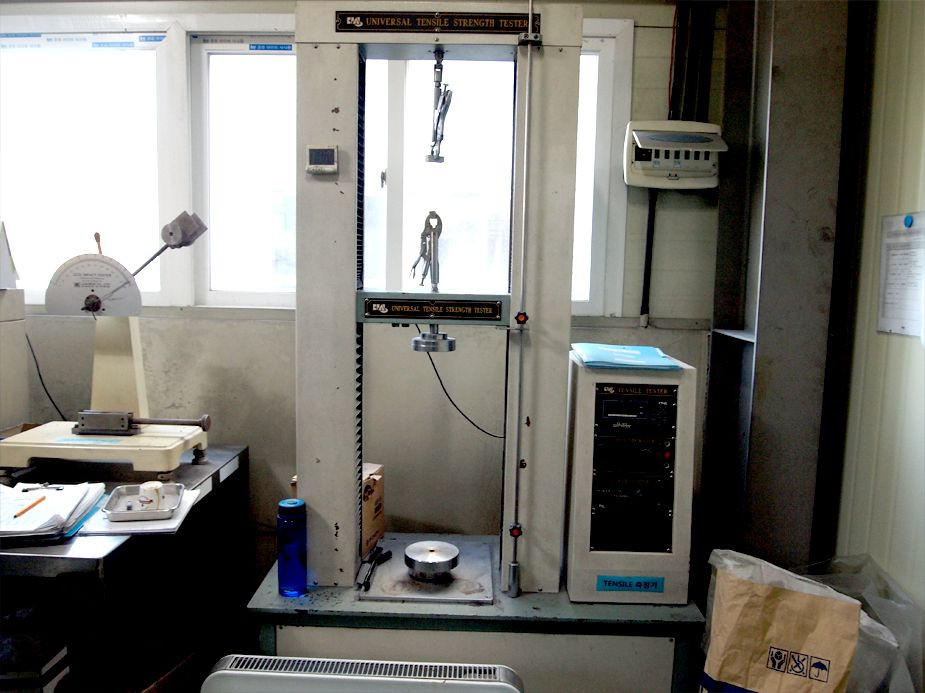

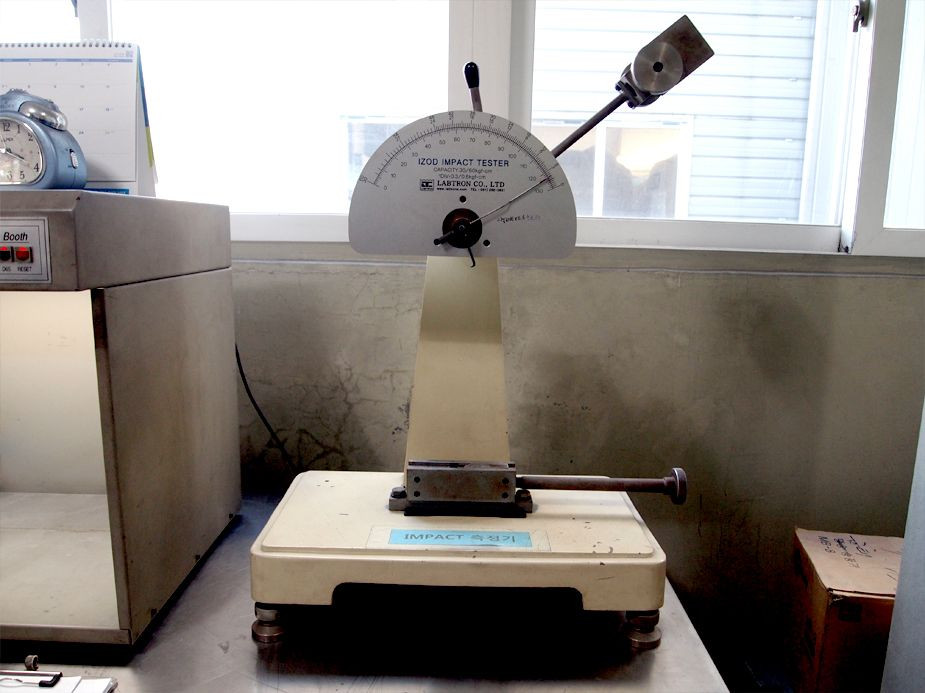

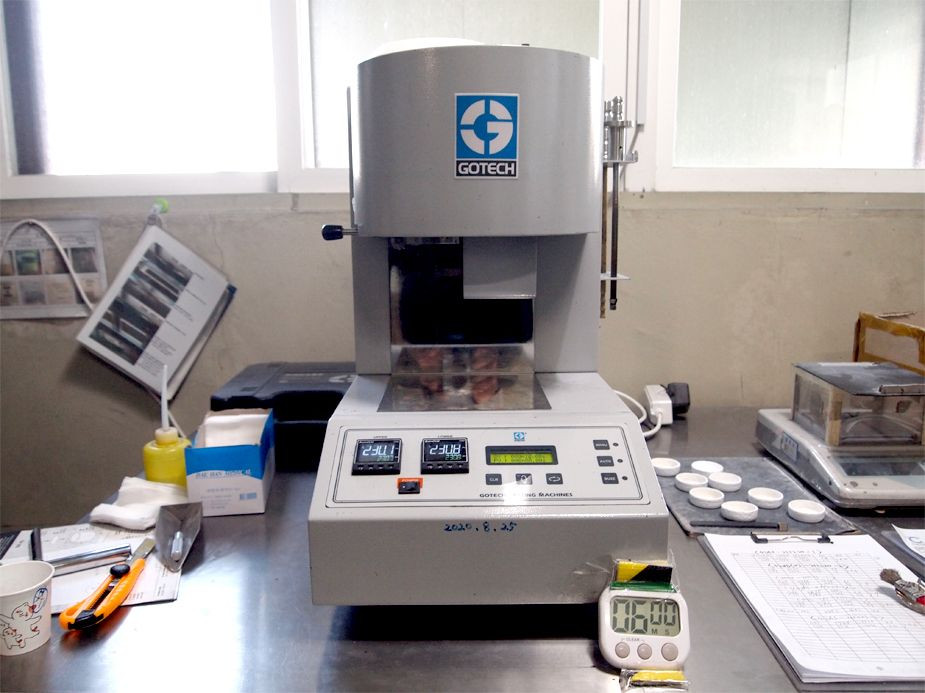

Quality Inspection center:
Certification:
FAQ
Are you trading company or manufacturer?
We are manufacturer.
About Sample?
Up to 15kg Free Sample can be offered, Delivery cost should be pay by buyer.
About Material Color?
We can make the material to your appointed color according buyer need.
How does your factory control the quality?
Quality is the Priority, we always pay great importance to quality from beginning to end, and we have professional QC for item quality from spare parts to finished goods.
How many days for mass production?
20 days after all artwork and 30% deposit are confirmed.
How can I get the samples? Is the sample free?
7-10 days to send free samples by DHL, TNT, and UPS. Sample is free but delivery cost have to pay by the buyer.
